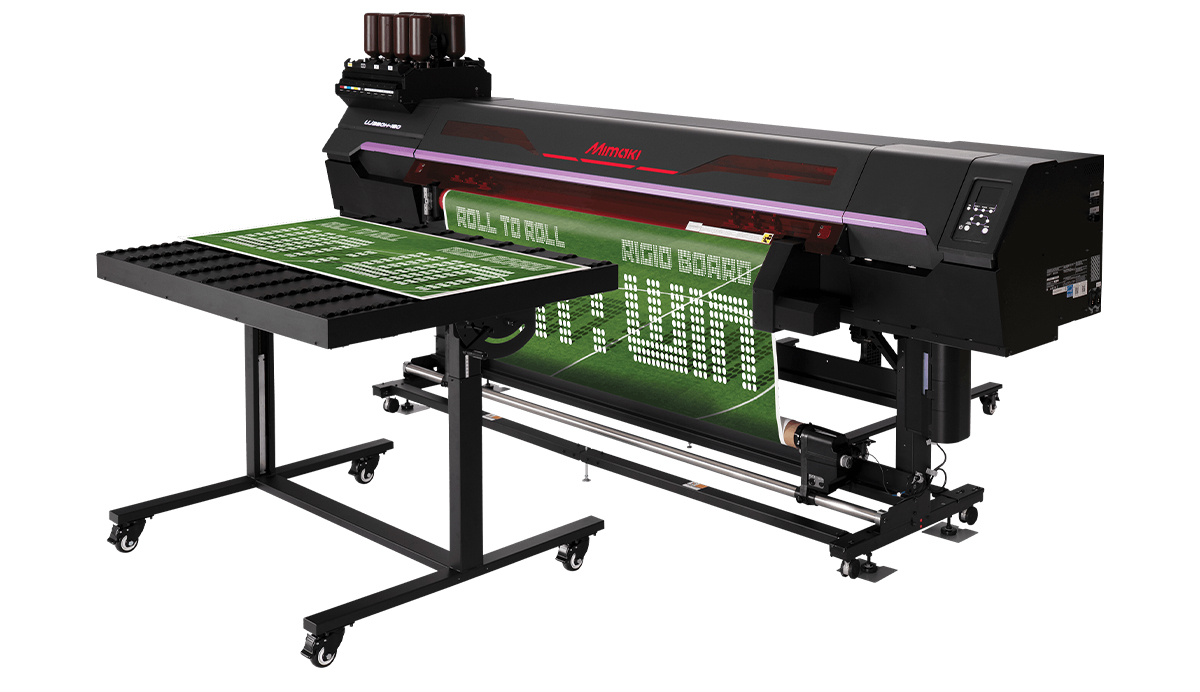

Mimaki UJ330H-160 Flatbed/Roll-fed UV inkjet printer

• Hybrid UV printer: Achieve direct printing on both roll and rigid board materials with just one machine
• Expand your range of applications while maintaining the reliability of your current work: Versatile media support for expanded signage applications (vinyl, tarpaulin, wallpaper, fabric, etc.)
• Boost your workflow efficiency: With stable handling of a wide range of rigid materials
• Fast, beautiful output with 330 quality: From solid, uniform fills to smooth, finely detailed gradations, with a practical productivity of 14.0 sqm/h*.
  *When using CMYK + White + Clear or CMYK LcLm + White ink sets.
• UV × 3-way conveyor system: Minimises the risk of media warping and deformation, ensuring stable media transport with a newly developed belt conveyor system
• Value-added UV capabilities: White ink, clear ink, and multi-layer printing up to five layers
• Next-generation UV ink that’s even safer for people and the environment: Approx. 30% less odour than before, SVHC-free, CMR-free

01. Expand your range of applications:
The UJ330H-160 supports roll media that were previously difficult to handle

Even thin films and fabrics, which were difficult to transport with conventional grit rollers, can now be conveyed stably.
This ensures high‑quality printing without damaging the surface of the material.

Reliable performance for your existing applications

• Indoor Signage (Self-Adhesive Vinyl and Banner)
• Retail Interior Décor (Wallpapers)
• Floor Signage (Self-Adhesive Vinyl)

Unlock new possibilities with challenging materials

• Soft Signage (Fabric)
• Space Divider / Tent Signage (Soft PVC)
• Window Graphics (PET Film)
• Bags, Shoes, and Vehicle Seats (Synthetic Leather)

*Material transport performance may vary depending on media type and specifications. Pre-testing is recommended before production.

02. Boost your workflow efficiency:
With stable handling of rigid (boad) materials

Direct printing onto a wide range of rigid board materials eliminates the need for costly outsourcing or labor-intensive mounting processes.

*The roller table in the picture is sold separately.

Boost your workflow efficiency

• Large-format boards - Outdoor Signage (Aluminum Composite Panel)
• Lightweight boards prone to warping - Display Panels (Styrene Board)
• Thick signage materials - Channel Signage (Foam Board)

Simultaneous printing of multiple boards

Print up to seven boards at once to reduce media changeover time and improve overall workflow efficiency.

03. Fast, Beautiful Output with 330 Quality

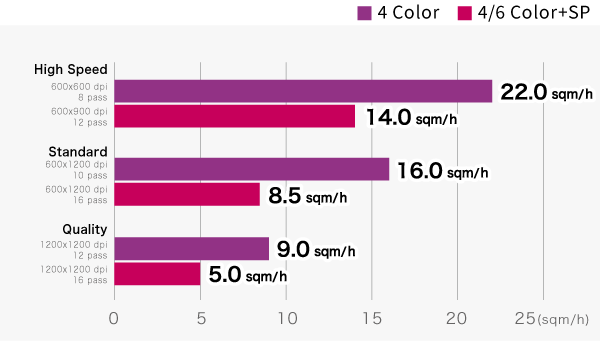

Equipped with high-density and high-definition 330 Series print heads in a staggered configuration, the UJ330H-160 delivers solid, uniform fills to smooth, finely detailed gradations with a practical productivity of 14.0 sqm/h*.

*When using CMYK + White + Clear or CMYK LcLm + White ink sets.

Precise control of ink droplets as small as 4 pl

Each ink droplet is placed exactly where intended, delivering high-quality images with no visible graininess.

Beautiful solid fills with high-density ink

Three precisely controlled droplet sizes are combined to produce smooth, even solid areas. Larger droplets provide coverage, while smaller dots refine details to create rich gradations and outstanding image quality.

UV x 3-Way Conveyor System

Heat-free UV technology minimizes the risk of media warping and deformation during printing, ensuring stable media transport.

Combined with Mimaki’s proprietary 3-Way transport system, the UJ330H-160 delivers reliable and stable output across a wide range of both roll and rigid media.

1. Auto Vacuum
   A powerful vacuum holds the media evenly across its surface during transport, preventing wrinkles and sagging.
2. Rear Clamp Roller
   Suppresses lifting and warping of rigid media, ensuring stable media transport alignment.
3. Power Lock Roller
   Suppresses warping at the front and edges of rigid media, ensuring stable transport even for large-format and warp-prone materials.

Value-Added UV Capabilities

• High-opacity white ink
• Clear Ink for gloss and matte finishes
• Multi-layer printing expands creative possibilities (up to 5 layers) Produce different designs on a single sheet—ideal for double-sided window graphics.

Next-generation UV ink that's even safer for people and the environment

The newly developed ELS ink is free from SVHC *1 and CMR *2 *3 substances, and offers approximately 30% less odor than before, making it even easier to use.

*1 Substances of Very High Concern (SVHC), which may pose significant risks to human health and the environment
*2 Substances classified as Carcinogenic, Mutagenic, or Reprotoxic (CMR)
*3 Indicates that as of March, 2026, it is not classified in the CMR category as an ink under the EU-CLP Regulation.
