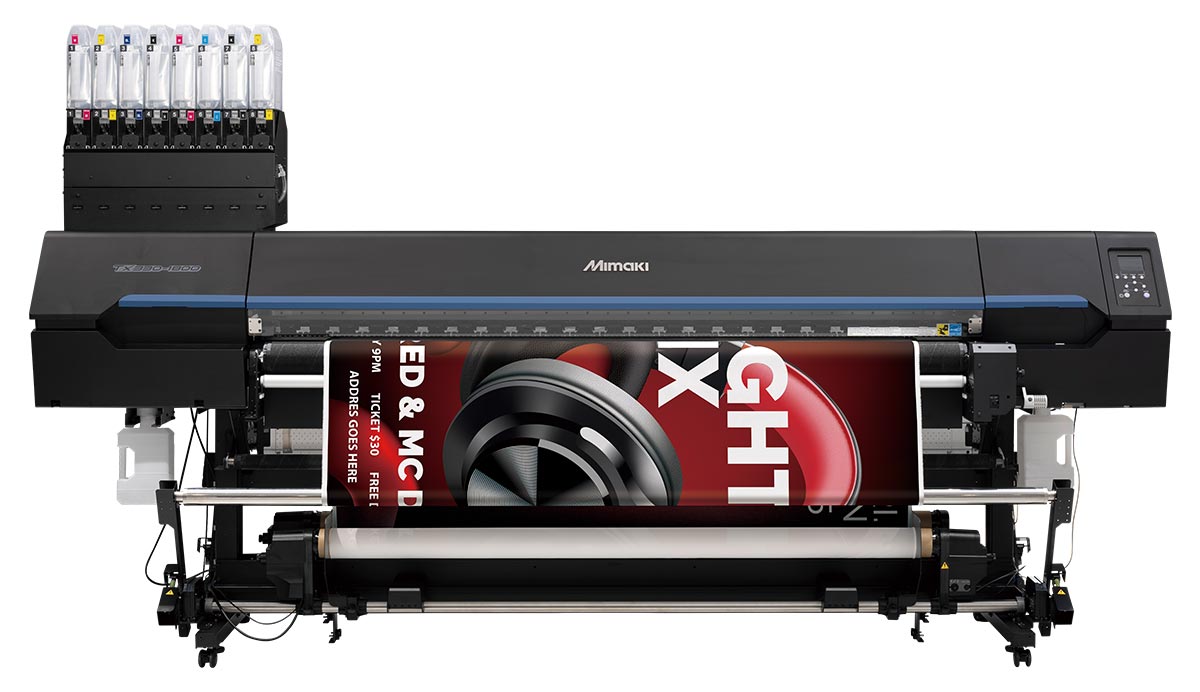

Mimaki Tx330-1800B Direct-To-Textile Printer
Stably print on stretchy, thick, and thin fabrics commonly used for apparel
NEW
Waterless Digital Textile Printing for Modern Apparel Production
High-Quality Printing on Stretch Fabrics with Vibrant Colour Performance
The Tx330-1800B Belt-Type 1.8m Direct Textile Inkjet Printer represents the next generation of waterless digital textile printing technology. Designed for the apparel industry, this advanced direct-to-fabric printer delivers stable, high-definition printing on stretchy, thick, and lightweight fabrics, enabling consistent results across a wide range of textile materials.
With vivid colour reproduction and precision printing, the Tx330-1800B is ideal for producing custom garments, fashion textiles, and printed fabrics with exceptional clarity.

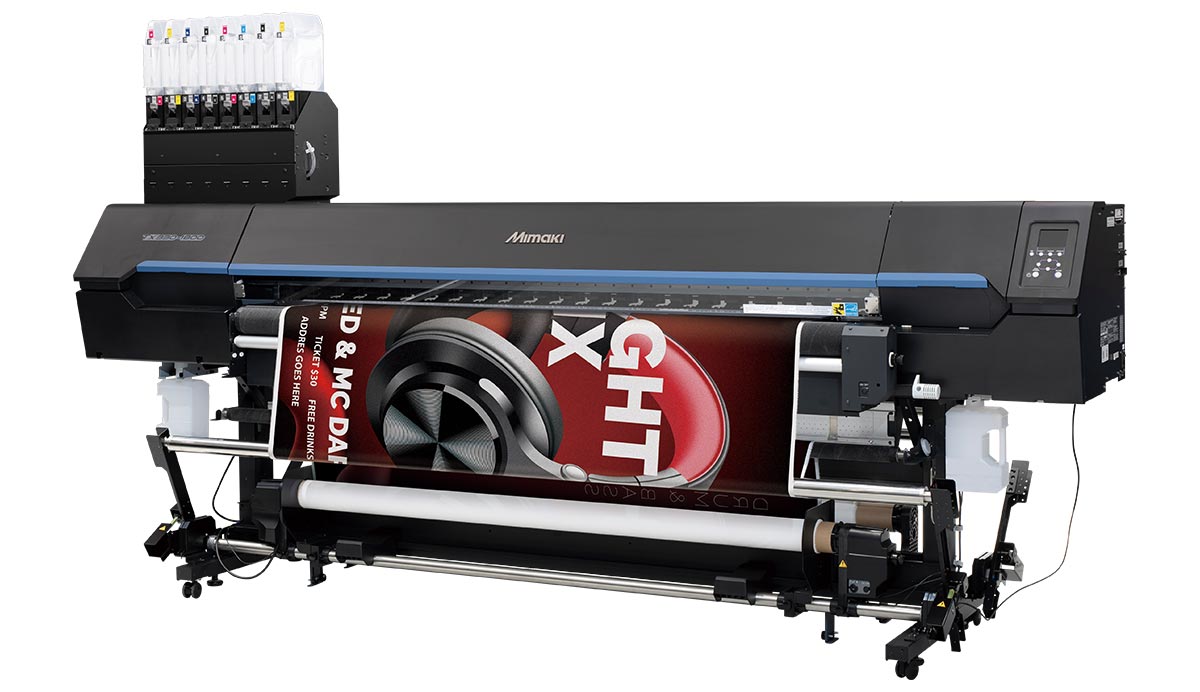

Tx330-1800B Belt-Type 1.8m Direct Textile Inkjet Printer
Reliable Digital Textile Printing for Apparel Fabrics
The Tx330-1800B digital textile printer features a space-saving belt conveyor system that allows fabrics to be transported smoothly and securely during printing. By fixing materials to a sticky belt surface without external tension, the printer ensures stable printing performance, even on elastic fabrics and thicker textiles commonly used in apparel manufacturing.
This makes it a practical solution for small-batch textile printing, custom clothing production, and on-demand fashion manufacturing.
Even More Beautiful, Even Faster!
A Simple Process, without the Use of Water
Making Digital Textile Printing More Accessible to Customers.
The Tx330-1800B is a direct textile inkjet printer that can be used with dedicated textile pigment inks and dye sublimation inks, and use almost no water in the textile printing process. Compared to the complicated textile printing process that requires a large amount of water for conventional dye inks, these inks complete the textile printing process with a simple printing and baking (heat treatment) procedure, eliminating the need for water supply and drainage, water purification facilities, and dyeing expertise, making digital textile printing more accessible to customers.
In addition, the "330 Engine," a high-resolution, high-definition print head that is used in our flagship printers, and our proprietary imaging technology, will enable customers to create expressive on-demand textile prints with higher image quality than ever before through beautiful gradation expression and high-density printing.
Choice of Ink Type: Mimaki's Waterless Textile Printing Inks for Different Types of Fabrics and Applications
Safety and environmental friendliness are excellent:
TP410 is bluesign® APPROVED and Sb420 is ECO PASSPORT certified.
Textile Pigment Ink TP410
(C/M/Y/K/R/Gr/Bl/Lk）
Capable of printing various types of fabrics such as natural and chemical fibres. After printing, ink is fixed only by heat processing, simplifying post-processing equipment.
*Additional equipment may be required depending on printing conditions.
The 8C ink set adds a new colour, Green, to the conventional TP400 7C ink set, which greatly expands the colour gamut and allows for vivid, high-colour expression.
*Only TxLink5 is compatible with TP410-8C ink set (RasterLink7 is not compatible).
Dye Sublimation Ink Sb420
(Bl/M/Y/K/Lb/Lm）
(Bl/M/Y/K/Lb/Lm）
Direct printing on polyester fabric. Proposes visual communications with vivid colour.
Hybrid Ink Set: Simultaneous Use of Two Types of Ink Greatly Expands the Range of Applications
Textile Pigment Ink TP410 (C/M/Y/K)
Dye Sublimation Ink Sb420 (Bl/M/Y/K)
Dye Sublimation Ink Sb420 (Bl/M/Y/K)
Indoor and outdoor fabric signages and apparel merchandise in a variety of fabrics support event needs!
Equipped with "330 Engine" for high-resolution and high-definition printing
Equipped with our flagship model print engine. Direct textile printing is also fast and beautiful.

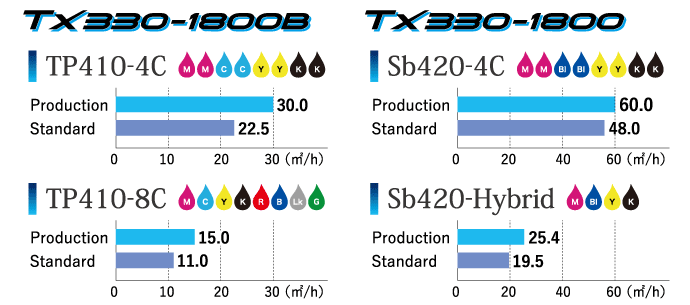

Production Speed
*Only the print modes that are expected to be used primarily with each model are listed. Please contact each sales office for information on ink sets and modes not listed.
Software
TxLink5 Lite or RasterLink7 is bundled according to user's request.
| Print head |
On-demand piezo head (2 staggered layout) |
|
| Print resolution |
300, 600, 900, 1200, 1800 dpi |
|
| Ink | Type/Colour |
Textile Pigment Ink TP410 |
| Capacity |
2L Ink Pack |
|
| Maximum print width |
1,890 mm (74.4") |
|
| Media | Maximum width |
1,900 mm (74.8") |
| Thickness |
5.0 mm (0.2") or less |
|
| Roll weight |
40 kg (88.2 lb) or less (2~3" core) |
|
| Interface |
Ethernet 1000BASE-T (Recommended), USB2.0 Hi-Speed |
|
| Certifications |
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, |
|
| Power supply |
AC100~120V/200~240V±10% 5A 50/60Hz±1Hz |
|
| Power consumption |
Max. 500W or less / Minimum 4.5W or less |
|
| Dimensions (W×D×H) |
3,230 mm x 1,912 mm x 1,900 mm (127.2" x 75.3" x 74.8") |
|
| Weight |
622 kg (1371.3 lb) |
|
- Some of the samples in this website are artificial renderings.
- Specifications, design and dimensions stated in this website may be subject to change without notice (for technical improvements, etc).
- The corporate names and merchandise names written on this website are the trademark or registered trademark of the respective corporations.
- Inkjet printers print using extremely fine dots, so colors may very slightly vary after replacement of the printing heads. Also note that if using multiple printer units, colors could vary slightly from one unit to other unit due to slight individual differences.
