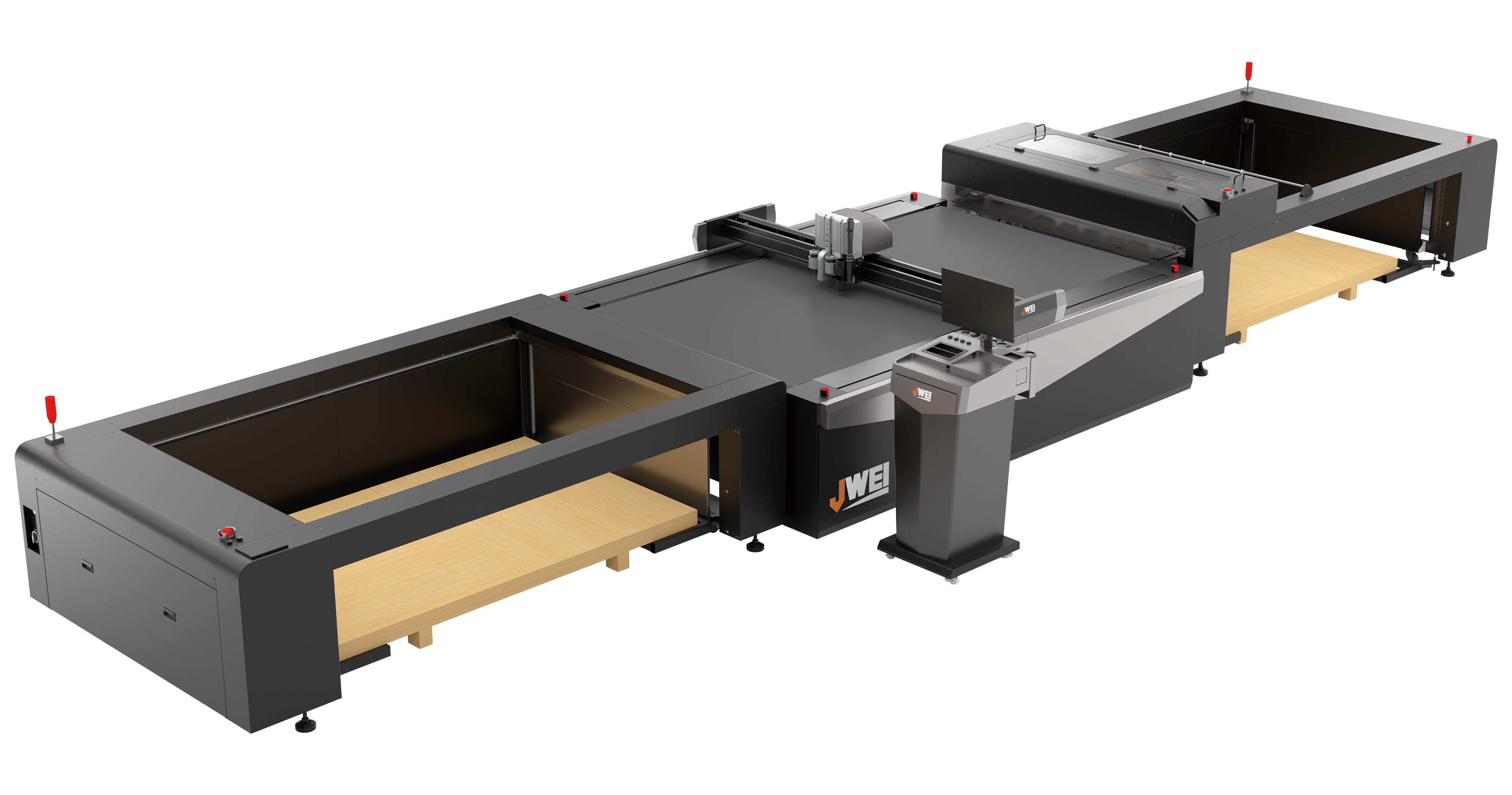

JWEI SG1625 automated, FSDU/POP and short-run packaging solution
Auto Loading-unloading System
By enhancing production efficiency and achieving optimal cut quality, the fully automated JWEI SG1625 digital cutting tables are expanding their market share and impressing clients with their technical capabilities, which have greatly improved production output. The SG1625 digital cutting tables are particularly well-suited for handling creative packaging products, advertising materials, and sound-absorbing products made from polyester fibreboard, corrugated cardboard, coated paper, PVC, special paper, greyboard, honeycomb board, ABS board, PVC sheets, EPE, EVA foam, and other materials.
-
Stacking for Loading and Unloading: Users consistently report increased efficiency when using forklift stacking for the loading and unloading process.
-
Back Scanning and Cutting: Utilising industry-leading back scanning technology, the SG1625 fully automated digital cutting tables ensure perfect print to cut registration and automatic job identification.
-
Automated Workflow: The integration of an auto loading/unloading system enables fully automated production, significantly boosting efficiency and reducing the requirement for a dedicated operator.
-
Versatile Machine Head: The SG1625 digital cutting tables feature a dual cutting head, specifically designed to handle a wide variety of materials.
Technical Parameters
|
Model |
SG1625 auto Loading-unloading System |
|
Multi-functional tool head |
Triple tool head |
|
Tools |
Electric oscillating tool, drag knife tool, plotting tools |
|
The max cutting speed |
2000mm/s (Depends on different kinds of materials) |
|
The max cutting thickness |
50mm (Depends on different kinds of materials) |
|
Repeat precision |
±0.05mm |
|
Material |
Corrugated paper, grey board, honeycomb board, EPE, EVA foam, PVC board, KT board, etc. |
|
Material fixation mode |
Vacuum suction |
|
Transmission port |
Ethernet port |
|
Drive system |
High-end digital servomotor, imported linear guide, synchronous belt, lead screw |
|
Rated power |
17kW |
|
Rated voltage |
380V±10% |
|
Maximum loading height |
750mm |
|
Maximum feeding thickness |
30mm |
|
Single sheet feeding weight |
5kg |
|
Maximum loading-unloading material size |
2500mm×1600mm |
|
Minimum loading-unloading material size |
900mm×600mm |
|
Effective cutting size |
2500mm×1600mm |
